Bidirectional 837

Since I've been working in insurance, I always thought it would be fun to try to make my own 837 translator. This one was built entirely from free and open-source material: providers come from the public NPI registry, and medical codes and prices from published CMS fee schedules. Patient names are synthetic, so no real person appears anywhere in it.

An 837 is the electronic claim a provider sends a payer. This goes both ways: it generates synthetic bills and serialises them to ASC X12 837 Professional, and it reads 837 files back into the same schema. The requirement joining those two halves is that a file read in and written back out is the file that went in, byte for byte.

At the very bottom of this is just a simple format translation, and translation between formats is a classic problem in computer science. The domain is what makes it interesting to get wrong: a parser that drops a trailing zero produces a file that is still well-formed, still passes every downstream check, and is off by a cent. Nothing tells you. That is why the round-trip is the requirement rather than a nice property — it is the only assertion that catches a translation which lost something and stayed plausible.

I built it against a governance document written by a different model, and treated it as a binding contract rather than a suggestion — partly to see whether I could stand working that way. Where I had to break its letter, the departure is an entry in a decision register with the reason, and a test that fails if the code and the register drift apart. Thirty-two decisions and twenty-three findings later, that register is the thing I would keep if I had to throw the rest away.

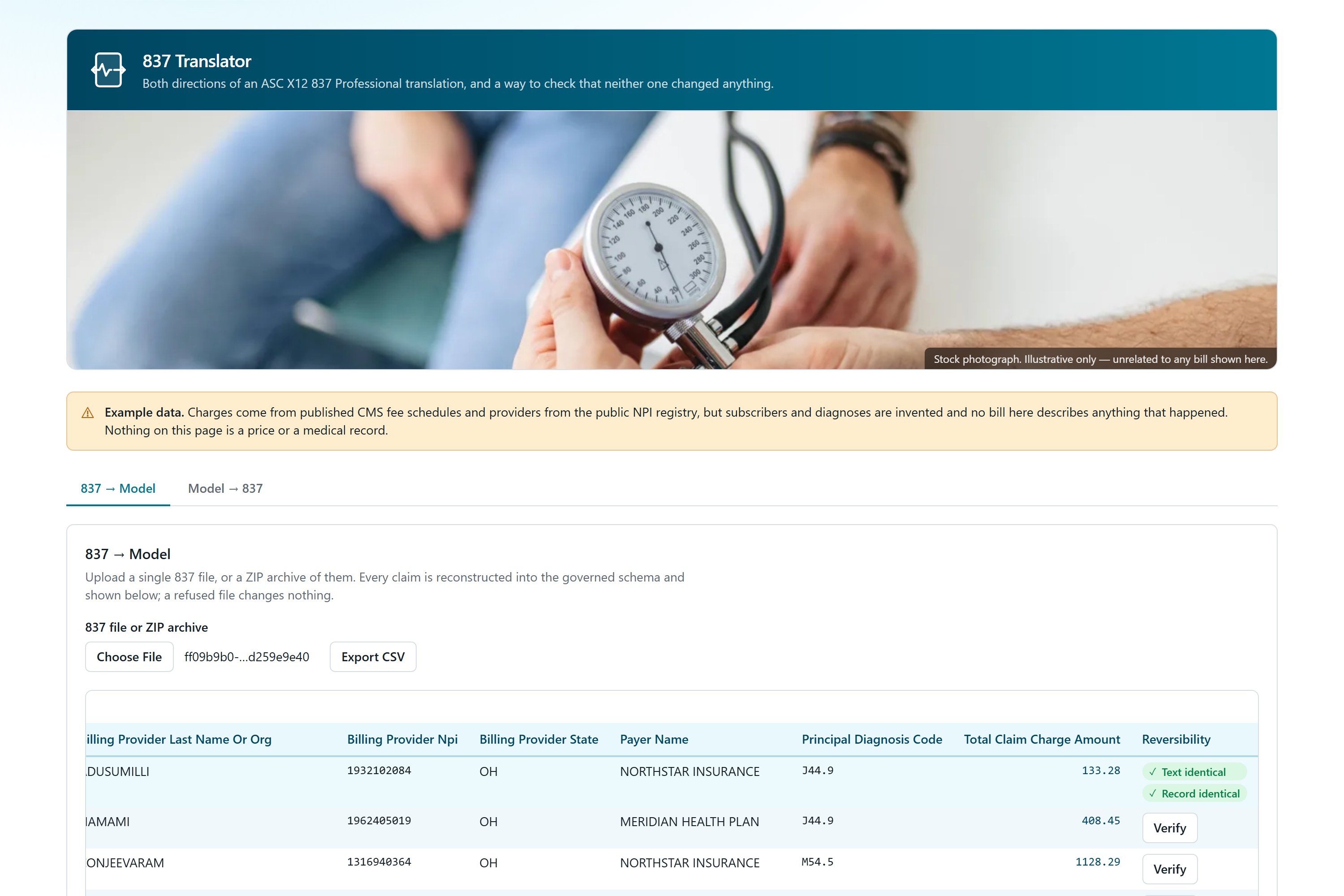

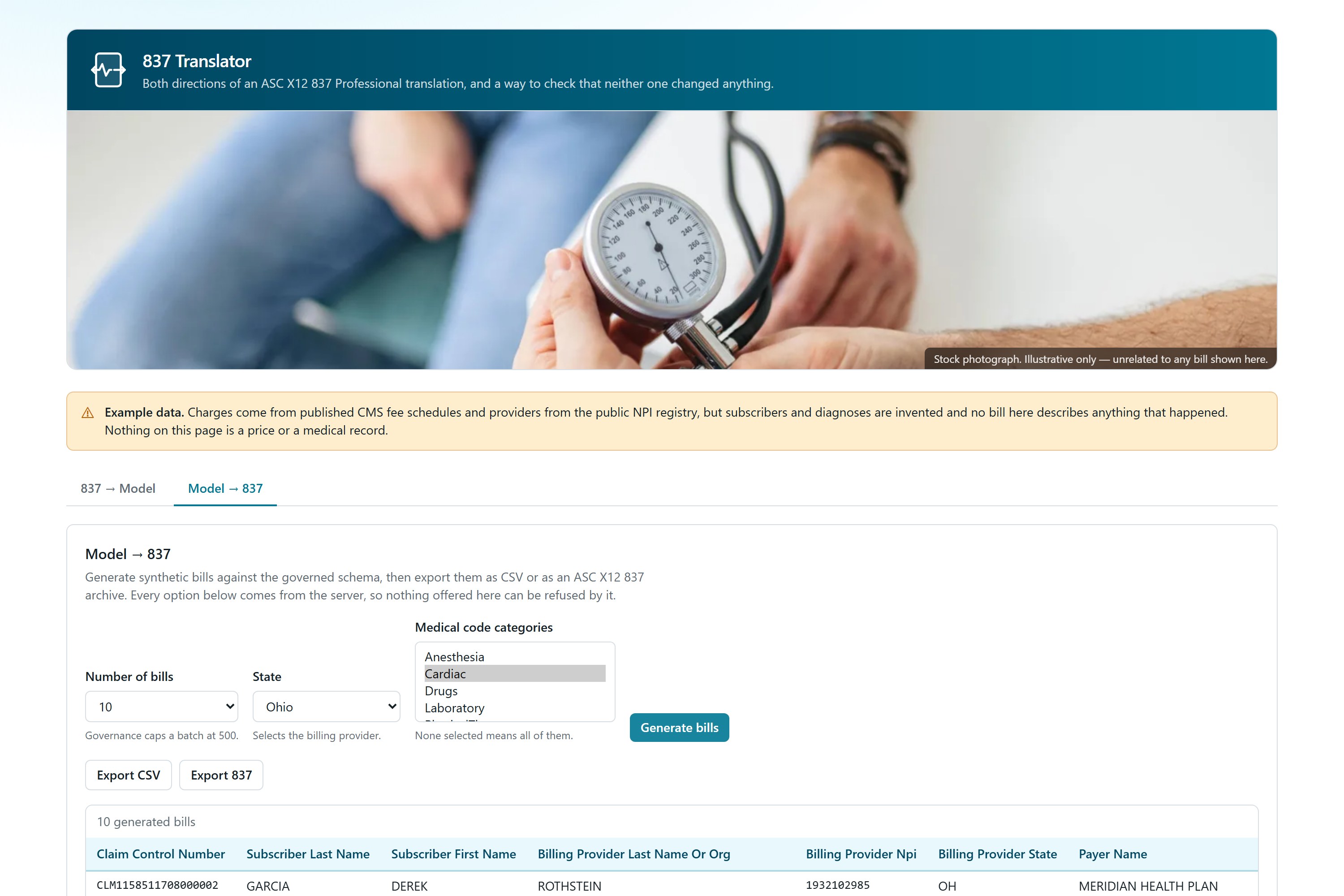

Walkthrough Screenshots

▶ play walkthrough

The same ten bills, twice — taken out of one session through the application's own two buttons. Open the CSV to read them, then open an interchange from the archive and find the same claim on its CLM segment. The archive is what a clearinghouse would receive.

Example data. Real providers and real published charges, invented patients, and no bill in either file describes anything that happened.

Nothing in it is invented that could have been real. I downloaded the 1.1 GB NPPES public file to avoid making a network call per claim, and distilled 3,120 providers out of it, each with a check-digit-valid NPI. 980 procedure codes, every one priced by a published CMS fee schedule — which is the ordering that matters: a code enters the catalogue because a schedule prices it, so there is no list of codes to discover holes in later. CPT is excluded throughout, because it is AMA copyright, and a test fails the build if a five-digit code ever reaches the catalogue.

// Translator.Edi/X12Number.cs — the two directions of a governed amount.
//
// X12 carries no scale: a charge of 1.00 is written "1". So the text cannot say whether that was
// a quantity of one or an amount of 1.0000, and the scale has to come from somewhere else.

/// <summary>Renders a governed decimal as an X12 R-type element.</summary>
public static string Render(decimal value)
{
    var text = value.ToString(CultureInfo.InvariantCulture);

    if (!text.Contains('.')) return text;

    text = text.TrimEnd('0').TrimEnd('.');

    // Trimming every digit of -0.00 or 0.00 leaves a sign or nothing at all.
    return text.Length == 0 || text == "-" ? "0" : text;
}

/// <summary>Reads an X12 R-type element back at the governed scale it was declared with.</summary>
/// <exception cref="FormatException">
/// The element is not a number, or carries more precision than the governed column can hold.
/// Rounding it instead would store an amount the file does not state, which is the corruption
/// FIND-001 recorded arriving through a different door.
/// </exception>
public static decimal Parse(string element, int governedScale)
{
    if (element is null || !NumericElement().IsMatch(element))
        throw new FormatException($"'{element}' is not an X12 numeric element.");

    var point = element.IndexOf('.');
    var suppliedScale = point < 0 ? 0 : element.Length - point - 1;

    if (suppliedScale > governedScale)
        throw new FormatException(
            $"'{element}' carries {suppliedScale} decimal places; the governed column holds " +
            $"{governedScale}. Reading it would silently change the value.");

    // Addition takes the larger of the two scales, so adding a zero of the governed scale restores
    // the trailing zeros rendering suppressed. Rounding would not: decimal.Round(1m, 2) is 1, not
    // 1.00, and the difference is exactly what FIND-002 recorded in the store.
    return decimal.Parse(element, NumberStyles.AllowLeadingSign | NumberStyles.AllowDecimalPoint,
               CultureInfo.InvariantCulture)
           + new decimal(0, 0, 0, false, (byte)governedScale);
}

Why this one: forty lines, and the whole byte-for-byte guarantee rests on them. X12 suppresses trailing zeros, so a charge of 1.00 goes out as "1" and the text can no longer say what scale it was. The scale has to come back from the governed column — and the obvious way to do that is wrong.

decimal.Round(1m, 2) returns 1, not 1.00. Adding a zero of the target scale does work, because decimal addition takes the larger of its operands' scales. Reach for Round here and every amount silently loses its trailing zeros on the way back in, the next file written differs from the one read, and nothing anywhere reports an error — the claim round-trips, the export is well-formed, and the money is wrong.

Tests were written first and observed failing before the code existed, in every one of eleven sections. Invariants are xUnit Theories and Vitest it.each tables rather than single examples, so a failure names the input that broke it. The clearest thing that bought: a persistence test, written before there was a persistence layer, caught the worst defect in the project. The governed schema says decimal(18,2); SQLite reads a type name it does not implement, gives the column NUMERIC affinity, and coerces the value to a float. Written 9999999999999999.99, the store handed back 10000000000000000. The annotation was correct, the entity was correct, and the money was wrong — so amounts are stored as integer minor units now.

I broke that protocol once. Building the client I wrote the helper tests, watched forty-six of them fail, implemented against them — and only then noticed I had never committed the failing tree. So I set the implementations aside, restored the stubs, confirmed seventy-three genuine failures, and committed that. It cost an hour and changed no behaviour at all. It is in the evidence log under the word disclosed, because a protocol you quietly patch when nobody is looking was never a protocol.

The suite was green the whole way, and the findings I would actually take to a team are the ones it was green through. Two are worth anyone's time:

Both say the same thing: a passing test proves the assertion held, not that the scenario was the one in the test's name. The habit that came out of it is cheap enough to hand to anyone — assert the request as well as the response, and make a negative test fail for the reason it claims before trusting it. The register has twenty-three of these written up, including the two that only appeared once a single test carried a claim across a host boundary and looked back at it.
